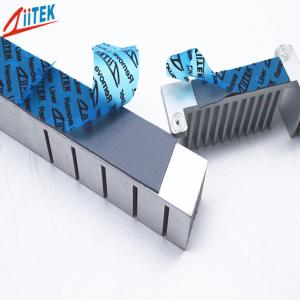

self-tacky and High durability thermal gap filler for Heat pipe thermal solutions,12 Shore 00,2.9 g/cc
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF100-30-11ES-Datasheet-REV02.pdf
TIF160-30-11ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
<Good thermal conductive:3.0W/mK
<Thickness:1.5mmT
<Hardness:12 Shore 00
<Colour: gray
<Moldability for complex parts
<Outstanding thermal performance
Applications
<Telecommunication hardware
<Handheld portable electronics
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
Typical Properties of TIF160-30-11ES |
| Product Name | TIF160-30-11ES Series |
| Colour | gray |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 2.9 g/cc |
| Thickness | 1.5mmT |
| Hardness | 12 Shore 00 |
| Dielectric constant@1MHz | 4.0 MHz |
| Continuos Use Temp | -40to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 1.5 W/mK |
| Volume Resistiviyt | 1.0*1012 Ohm-cm |
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
