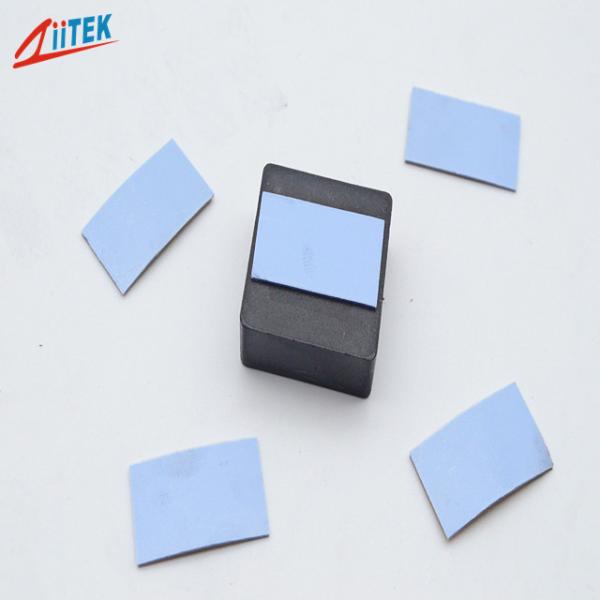

20 Shore 00 Blue RoHS Compliant 4.0 MHz Silicone Pads for Notebook
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF100-32-05US-Series-Datasheet-REV02.pdf
Ziitek TIF1120-32-05US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
<Good thermal conductive:3.2W/mK
<Thickness:3.0mmT
<Hardness:20 Shore 00
<Colour: blue
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
Applications
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
Typical Properties of TIF1120-32-05US |
| Product Name | TIF1120-32-05US Series |
| Colour | blue |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.0 g/cc |
| Thickness | 3.0mmT |
| Hardness | 20 Shore 00 |
| Dielectric constant@1MHz | 4.0 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 3.2 W/mK |
| Volume Resistivity | 1.0*1012 Ohm-cm |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
